Remote control and automatic optimization for plunger lift wells, on the controller already at the well.
High-frequency pressure data and AI keep the well tuned as conditions change.
30 minutes
Typical setup per well
3 control modes
To optimize each cycle
10 points per second
Pressure data
Two ways to connect
More control. More arrivals.
Integrate with the controller you have, or use ours to connect directly to your valves.
01 / Integrate with your controller
Keep your existing controller.
Connect Amplified to your existing plunger controller to add remote monitoring, control and optimization to the equipment already on your well.
Existing controller + Amplified
02 / Use our controller
Connect directly to your valves.
Use Amplified’s own plunger controller to connect directly to your valves and manage the well through the Amplified platform.
Amplified controller → Your valves
See every cycle
Every arrival tells a story.
High-frequency pressure data with open, arrival and close stamped on every cycle. This is the data smart mode runs on.
Two plunger cycles, tubing, casing and line pressure on one scale
Tubing
Casing
Line
Valve open
Pressure (psi)
Time
Values (2)+−
Cycle
Open
Arrival
Close
Trip
Peak tubing
Cycle 1
12:30
12:34:30
12:40
4.5 min
146 psi
Cycle 2
13:00
13:04:30
13:10
4.5 min
146 psi
Plunger arrival history8 trips · 09/09/26
Arrival
Trip
Duration against the good window
Grade
21:5309/09/26
2m 35s
Fast arrival
21:2109/09/26
2m 44s
Good arrival
20:4809/09/26
2m 41s
Good arrival
20:1609/09/26
2m 50s
Good arrival
19:4409/09/26
3m 02s
Good arrival
19:1209/09/26
3m 16s
Good arrival
18:4009/09/26
3m 27s
Slow arrival
18:0809/09/26
2m 53s
Good arrival
A grade for every trip.
The arrival ledger grades each trip fast, good or slow. Fast and slow trips, plus too many missed arrivals, reach your team by app, SMS or call.
Choose your control method
Three ways to optimize.
Start with the timer logic your operators already know, add pressure-based control, then let the well’s own physics set the pace. Switch from the dashboard at any time.
01
Timer
Shut-in, open and afterflow timers, edited remotely and logged. Recovery control extends shut-in after missed arrivals instead of chasing a plunger that is not coming.
Every well, day one
02
Pressure
Open on the casing-to-tubing differential or on pressure build, so the well cycles when it is ready. Fewer wasted trips, fewer fast hits.
Modbus-class controllers
03
Lift factor
A well-specific SPE model reads high-frequency pressure data and sets the arrival speed that balances production against plunger wear, then adjusts cycle times to hit it.
Only from Amplified
Smart mode
You set the limits. AI does the tuning.
Pick a method, set your limits and switch on smart mode. Amplified reads every arrival against your fast and slow thresholds and nudges shut-in and afterflow toward the target, one step at a time.
Each change is written to the control history next to the ones your operators make, so you always know who did what and why.
Plunger cycle mode
Shut-in time
Open valve time
Afterflow time
Plunger cycle phases
Current control settings
Smart mode · 30-minute cycle
Shut-in time19m 00s
Open valve time6m 00s
Afterflow time5m 00s
Control history
System AI and operators, one ledger
Command
Settings
User
Time
Update plunger cycle
Shut-in 19m 00sOpen 6m 00sAfterflow 5m 00s
System AI
9/9/2026, 4:30 PM
Update plunger cycle
Shut-in 20m 00sOpen 6m 00sAfterflow 5m 00s
Wade McAllister
9/9/2026, 3:07 PM
Update plunger cycle
Shut-in 23m 00sOpen 6m 00sAfterflow 5m 00s
System AI
9/9/2026, 2:45 PM
Update plunger cycle
Shut-in 20m 00sOpen 6m 00sAfterflow 5m 00s
Cody Harlan
9/4/2026, 2:03 PM
Close
Not available
Cody Harlan
9/4/2026, 1:44 PM
Update plunger cycle
Shut-in 20m 00sOpen 6m 00sAfterflow 5m 00s
Travis Whitaker
9/3/2026, 1:47 PM
Open
Not available
Travis Whitaker
9/3/2026, 1:38 PM
Close
Not available
Travis Whitaker
9/2/2026, 1:30 PM
Built for the field

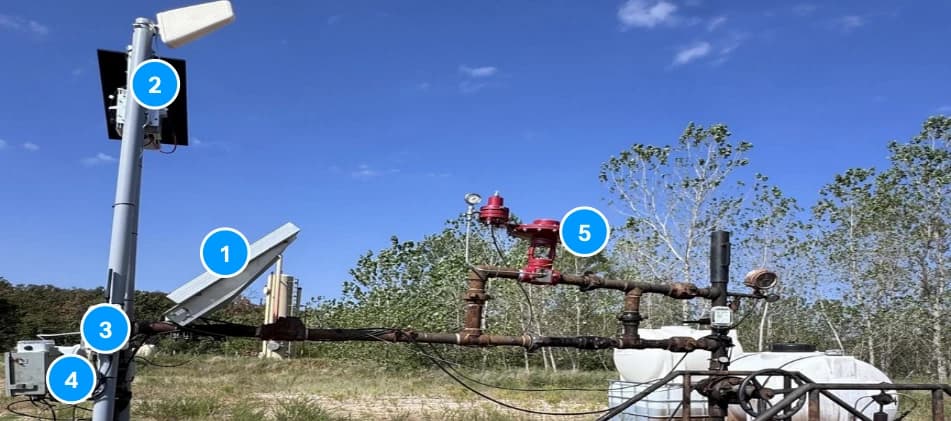

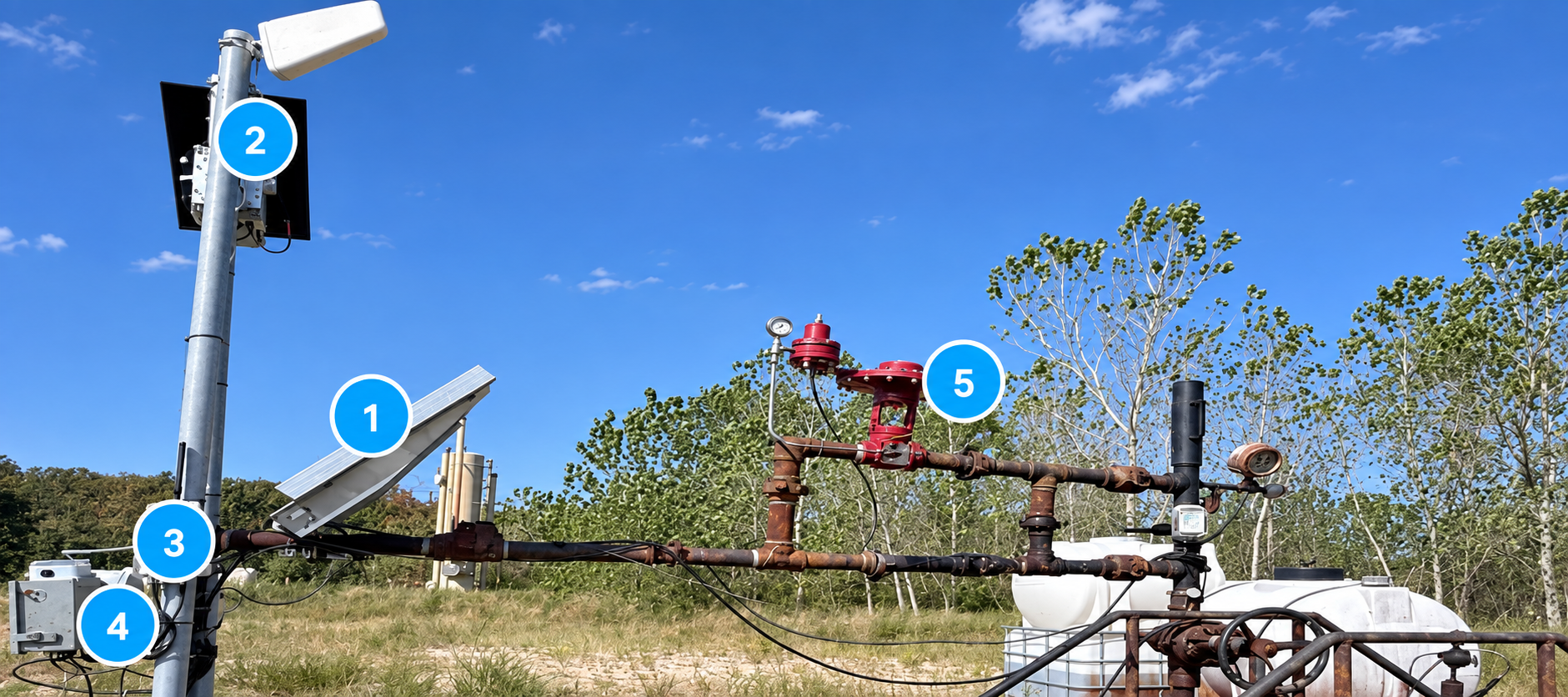

Installed in 30 minutes.
Upgrade your field of legacy controllers in a couple days.
1Solar kit
2Gateway
3Tubing and casing pressure devices
4Your controller + Amplified Plunger Box
5Pneumatic valve
In your pocket
Your well. Wherever you are.

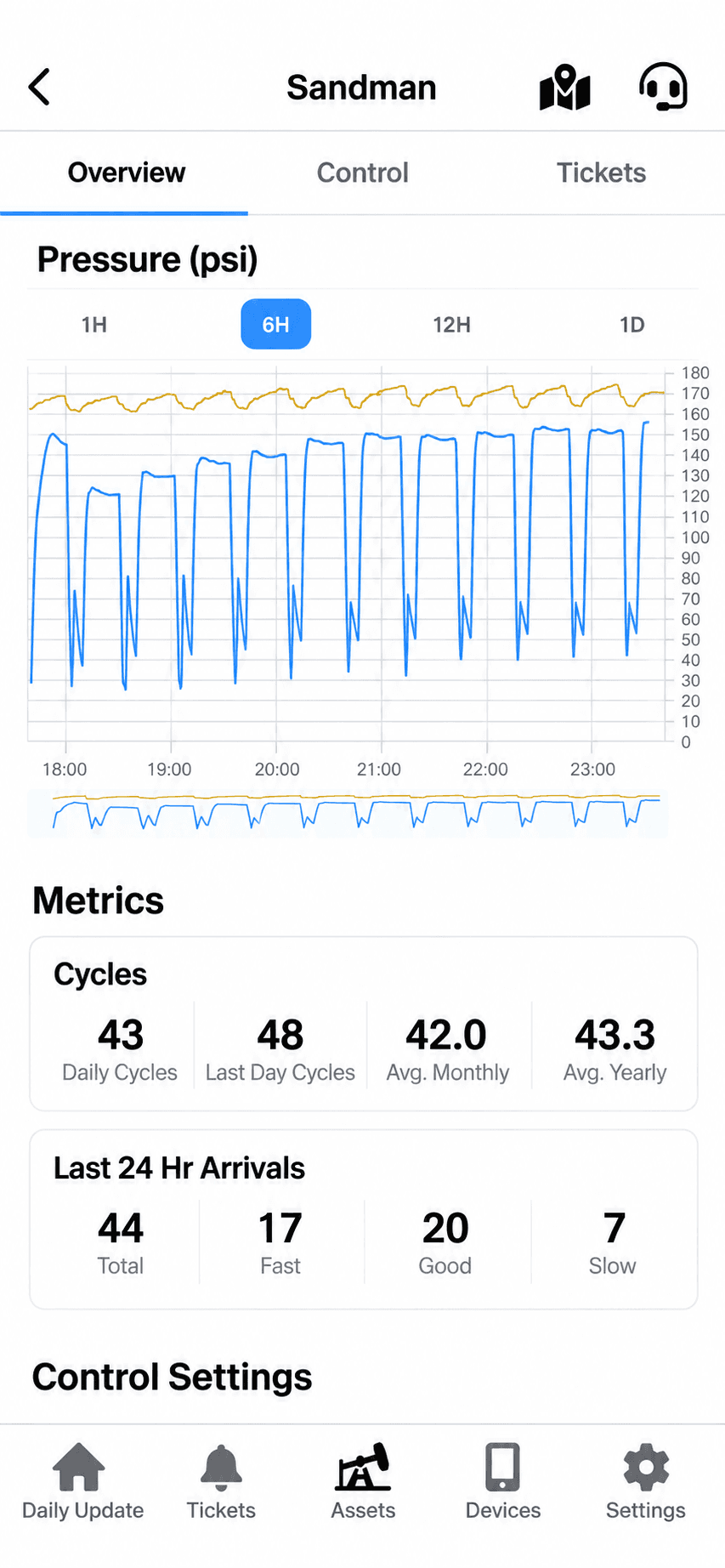

Everything on the dashboard is in the Amplified app. Switch modes, change timers, read pressures and take alerts by push, SMS or call.
What goes on the well
Every cycle. Analyzed.

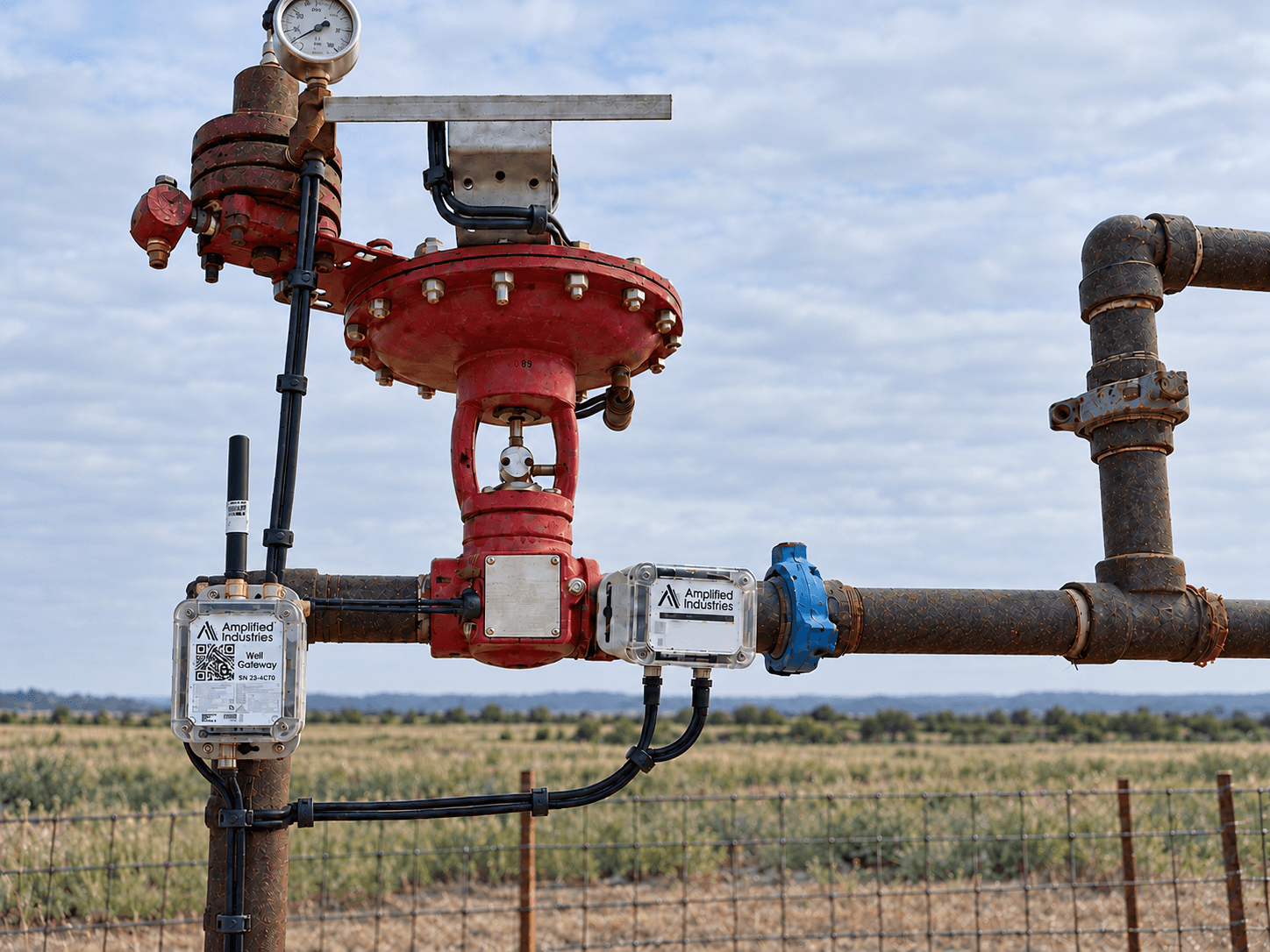

Two wireless pressure devices, a gateway, the Amplified Plunger Box and a solar kit. Explore the hardware and take control of the next cycle.
Connected plunger wellHover to explore · select to control
Amplified Plunger BoxConnected
Plunger control
Your controller. Every cycle, in view.
Lift Factor control
Tune the cycle toward a target arrival time using pressure and the last plunger trip.
Current phaseShut-in
8:00
Shut-inLiftingAfterflow
Production valveClosed
Casing − tubing33.0 psi
Commands apply now. Lift Factor control continues. Last arrival: 180 sec · Good
Swipe to explore the well. Tap a device for details.
